FEATURE

• Patented technology (EDMA) to reduce the internal Rdson and heat loss, increase the output power

  Po=3.5 W (V_DD=5.0V, R_L=4?, THD+N=10%)

  Po=5.5 W (V_DD=5.0V, R_L=2?, THD+N=10%)

• Excellent EMI Suppression Performance

  a) Using Patented technology (AROC, Active edge Ringing and Overshoot Control circuitry)

  b) The emission level is highly lower than FCC Part15 Class B standard

  c) Without interference to FM radio, CMMB, GSM, CDMA, Bluetooth and any other sensitive modules with different bands;

  d) The difficulty of system design is reduced

• THD+N=0.05% (R_L=4?, P_O=1W, f=1kHz)

• Low noise, High SNR

• Anti-Clipping Function (ACF)

• Excellent Click-Pop Noise reduction function

• Low Shutdown Current, 0.01μA

• Filter-less Modulation, Eliminating Output Filter

• Over Current Protection, Thermal Protection, Low voltage malfunction prevention function included

• Pb-Free Packages, SOP8L, SOP8L-PP, DFN8L(5mm*6mm)

APPLICATIONS

• LCD TV/Monitor


• Portable Gamers

• Bluetooth Speakers

• Portable Speakers

• 2.1 Channel Speakers

• Megaphone

• iPhone/iPad docking

• MP4/GPS

• Tablet PC/Note Book

• Smart phones

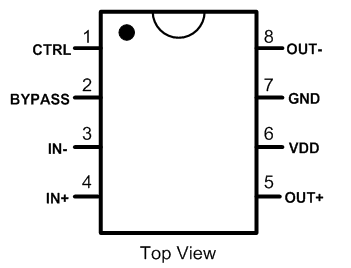

SOP8L/DFN8L

Terminal No.

Name

I/O

ESD

composition

Function
